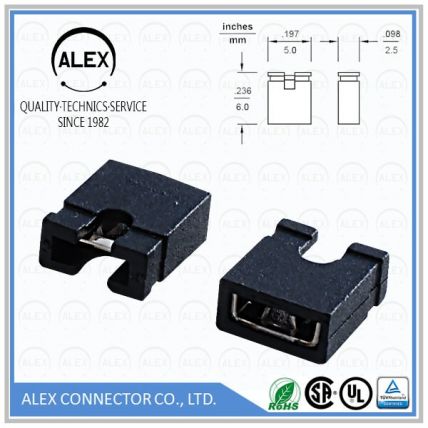

Category : Jumper

Pitch : .100＂(2.54mm)

Series : Jumper2540

File : Download

Product Features

◆ Contact material: Brass
◆ Insulator material: Polyester, UL 94V-0
◆ Open type or close type
◆ Easiest way of programming by simply
　connecting contact points together.
◆ Easy applied-No soldering.
◆ All side stackable.
◆ Low cost alternative to DIP switch.
◆ Mates with ALEX 6502, 6503,6504, 6508, 6522,
　6523, 9920 Headers
◆ Standard color: Black

Series Specifications

◆ Current rating: 3A
◆ Insulation resistance: 5000MΩ min.
◆ Dielectric withstanding voltage:
　500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
