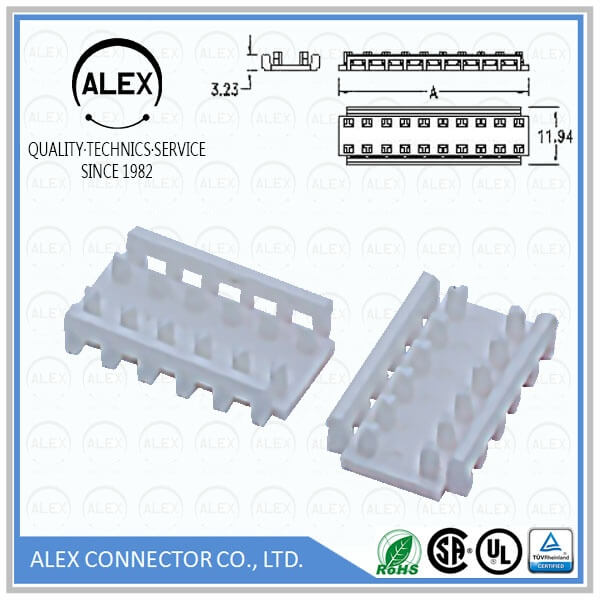

Category : IDC

Pitch : .156＂(3.96mm)

Series : IDC3961

File : Download

Product Features

◆ 2 ~ 20 circuits available
◆ Housing material: UL 94V-2 nylon 66
◆ Terminal material: Tin-plated phosphor bronze
◆ Closed End type
◆ With locking ramp
◆ Without Polarizing rib
◆ Through and end type
◆ Mates with ALEX 3960-xx, 3961-xx Headers
◆ Mates with ALEX 255C-xx Covers
◆ Wire range: AWG #18 ~ #24 (Flat ribbon wire)
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 7A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Dielectric strength: 1500V AC/minute
◆ Insulation resistance: 1000MΩ Min.
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range:
　-40°C ~ +105°C (Including temperature rise)
