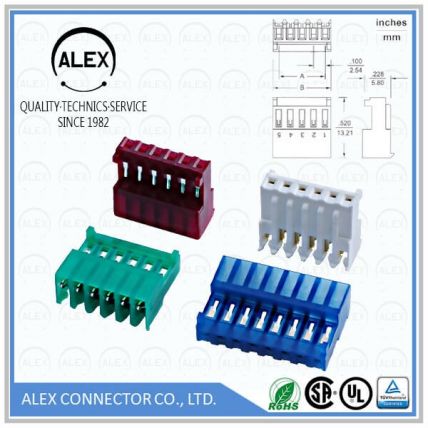

Category : IDC

Pitch : .100＂(2.54mm)

Series : IDC2541

File : Download

Product Features

◆ 2 ~ 24 circuits available
◆ Housing material: UL 94V-0 nylon 66
◆ Mates with ALEX 9254-xx IDC connector
◆ Color: White

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Dielectric strength: 1500V AC/minute
◆ Insulation resistance: 1000MΩ Min.
◆ Contact resistance: Initial value / See table
　After environmental testing / Twice of Initial
◆ Ambient temperature range: -40°C ~ +105°C
　(Including temperature rise)
