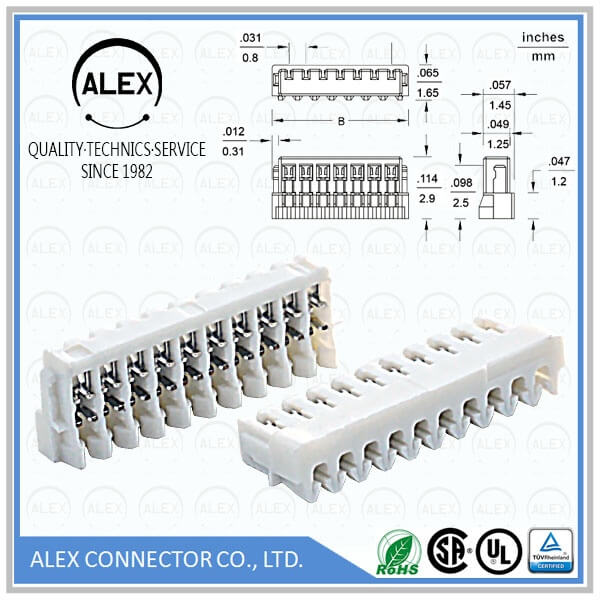

Category : IDC

Pitch : .031＂(0.80mm)

Series : IDC0801

File : Download

Product Features

◆ 2~10, 12, 14~17, 20 circuits available
◆ Contact material: Tin-plated phosphor
　bronze
◆ Plastic material: UL 94V-0 Nylon 66 +25% GF
◆ Applicable wire: #32 ~ #36 AWG
◆ Mates with ALEX 9081, 9082 Headers

Series Specifications

◆ Current rating: 0.50A AC/DC (#32 AWG),
　0.20A AC/DC (#36 AWG)
◆ Voltage rating: 30V
◆ Contact resistance: 20mΩ Max.
◆ Insulation resistance: 100MΩ min. at 200V
◆ Dielectric withstanding voltage:
　200V AC/minute
◆ Temperature range: -30℃ ~ +85℃
