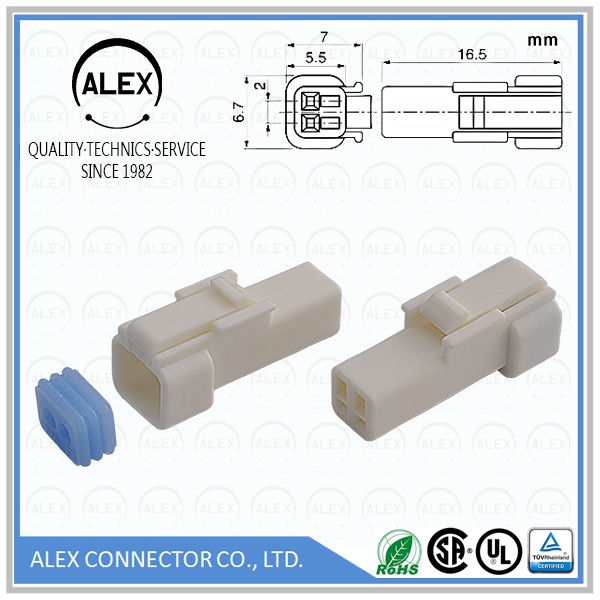

Category : Waterproof Connectors

Pitch : .079＂(2.00mm)

Series : WPF2001

File : Download

Product Features

◆ 2, 3, 4 circuits available
◆ Body: PBT, white
◆ Waterproof plug: Oil silicone, Light blue
◆ Accepts ALEX WPF2001T-R Terminal
◆ Mates with ALEX WPF2001H-xxT Housing
◆ Disconnectable crimp style

Series Specifications

◆ Current rating: 3A AC, DC (AWG #22)
◆ Voltage rating: 100V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ max.
◆ Withstanding voltage: 1000V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
