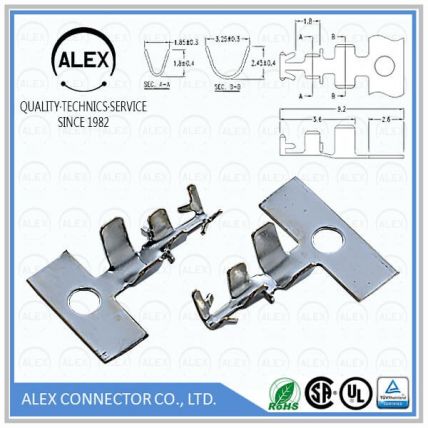

Category : Board-in Terminal

Pitch : .063＂(1.60mm)

Series : BIT1600

File : Download

Product Features

◆ Material: Phosphor bronze
◆ Finished: Tin-plated
◆ Wire range: #22 ~ #24 AWG
◆ Recommended P. C. Board hole diameter
　∅ 1.6+0.05/-0mm
◆ Applicable P. C. Board thickness: 1.57mm

Series Specifications

◆ Secures wire to P. C. Board before wave soldering
◆ Rapid and economical means of hand wring
　P. C. Boards
◆ Wire solders directly to P.C Board
◆ No additional contact resistance
◆ Low profile
