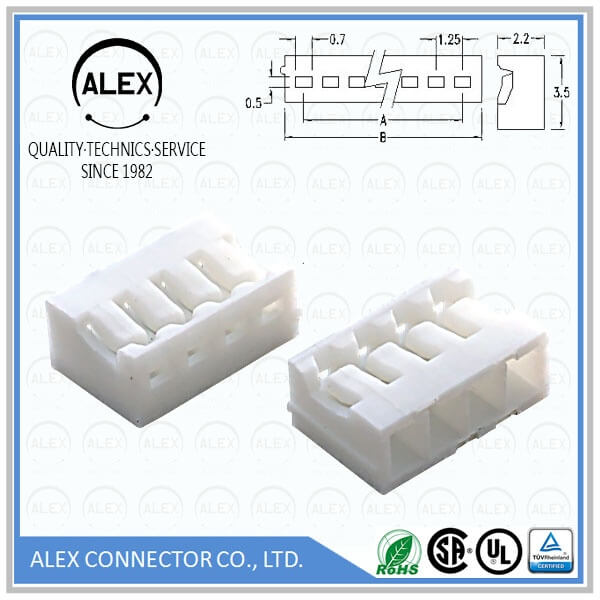

Category : Board-in Type

Pitch : .049＂(1.25mm)

Series : BIH1251

File : Download

Product Features

◆ 2 ~ 15 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Accepts ALEX 9861T terminal
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 1A (0.8A for #32 AWG)
◆ Voltage rating: 125V
◆ Dielectric strength: 250V AC/minute
◆ Insulation resistance: 100MΩ min.
◆ Contact resistance: 5mΩ Max.
　(on crimped partion)
◆ Temperature range: -40℃ ~ +85℃
　(Including temperature rise)
◆ UL file No.: E114003
