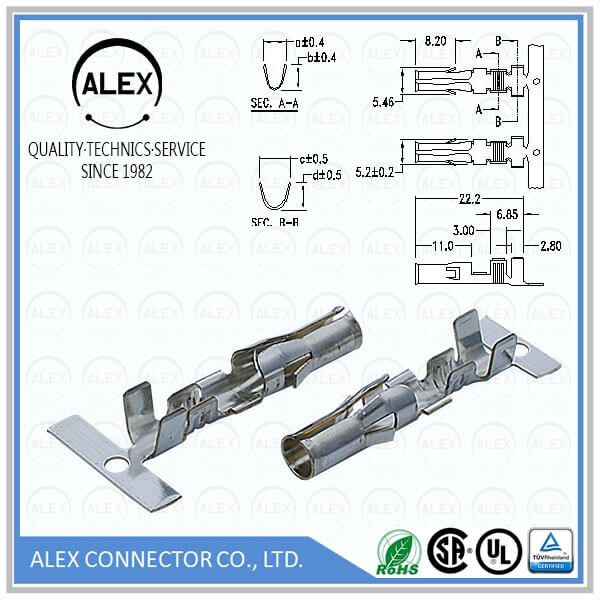

Category : Wire to Wire

Pitch : .330＂(8.38mm)

Series : WTW8381

File : Download

Product Features

◆ Material: Brass or Phosphor bronze
◆ Finished: Tin-plated
◆ Thickness: 0.3mm
◆ Wire range: #10 ~ #18 AWG
◆ Used in ALEX 8892 Housing

Series Specifications

◆ Current rating: 20A max.
◆ Contact resistance: 10mΩ max.
◆ Voltage rating: 600V
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40°C ~ +105°C
　(including temperature rise)
