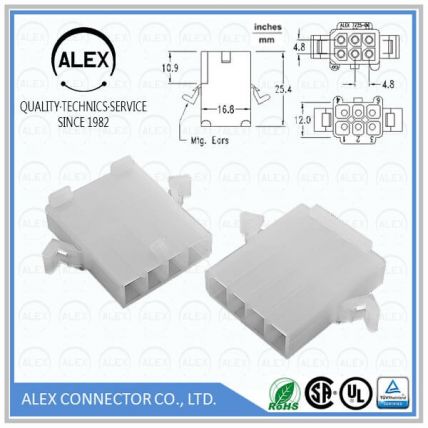

Category : Wire to Wire

Pitch : .189＂(4.80mm)

Series : WTW4801

File : Download

Product Features

◆ 2, 3, 4, 6, 9, 12, 15 circuits available
◆ Material: UL 94V-2 nylon 66
◆ Positive locking
◆ .062"(1.58mm) diameter pin and socket
◆ Accepts ALEX 55T, 56T terminals
◆ Without Mtg. ears
◆ Color: Nature
◆ UL File No.: E114003
◆ CSA File No.: LR86545

Series Specifications

◆ Current rating: 5A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range:
　-40°C ~ +105°C
