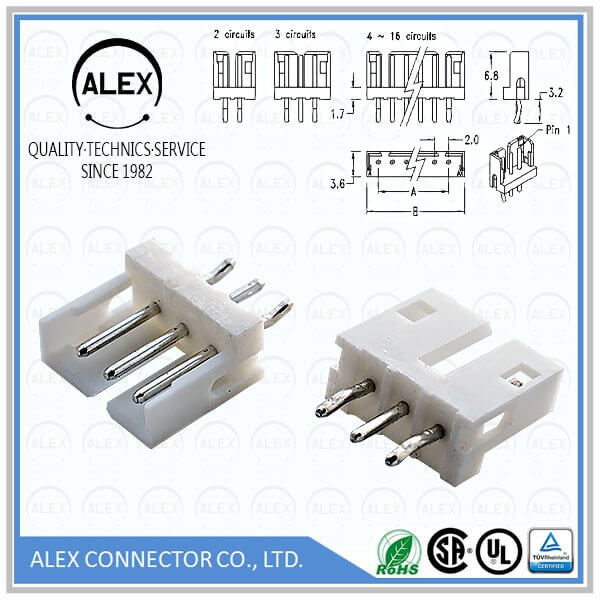

Product Name : Vertical Header / .079"(2.00mm) Wire-to-Board Connection System

Part Number: 2033-xx

Category : Wire to Board

Pitch : .079＂(2.00mm)

Series : WTB2004

File : Download

Product Features

◆ 2 ~ 16 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Contact: Tin-plated brass
◆ .024"(0.60mm) right angle round pins
◆ Mates with ALEX 2032-N Housing
◆ Applicable PCB thickness: .063"(1.60mm)

Series Specifications

◆ Current rating: 2A AC, DC
◆ Voltage rating: 100V AC, DC
◆ Contact resistance: Initial value/20mΩ max.
　After environmental testing/40mΩ max.
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 800V AC/minute
◆ Ambient temperature range: -25℃ ~ +85℃
　(Including temperature rise)
