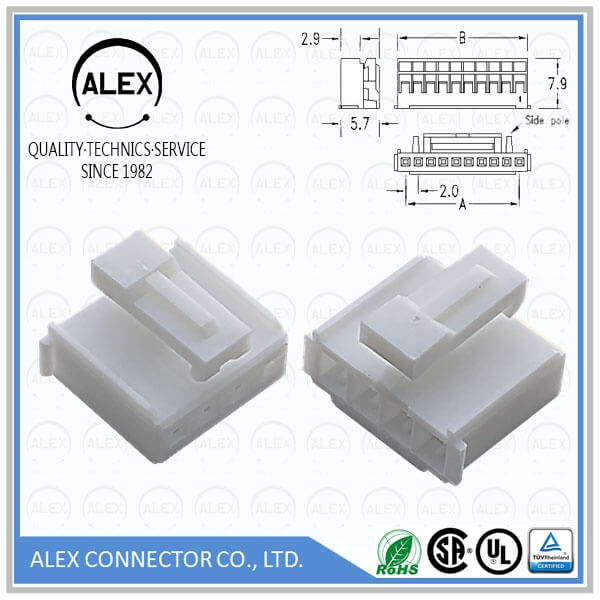

Product Name : Crimp Terminal Housing / .079"(2.00mm) Wire-to-Board Connection System

Part Number: 2036-xx

Category : Wire to Board

Pitch : .079＂(2.00mm)

Series : WTB2005

File : Download

Product Features

◆ 2 ~ 16 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Standard Color: White
◆ Without side pole
◆ Accepts ALEX 2035T Terminal
◆ Mates with ALEX 2037, 2038 Housing
◆ UL File No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: 20mΩ Max.
◆ Insulation resistance: 1000MΩ Max.
◆ Dielectric withstanding voltage:
　800V AC/minute
◆ Ambient temperature range: -25°C ~ +85°C
　(including temperature rise)
