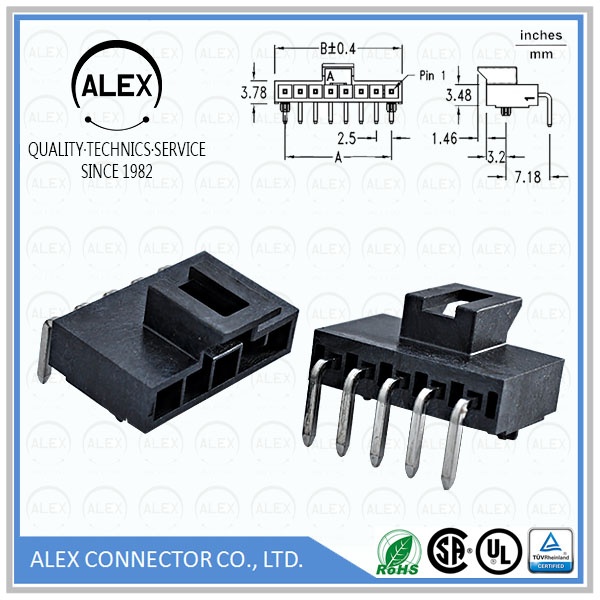

Product Name : Single Row Right Angle Header / .098"(2.50mm) High Conductivity Power Connectors

Part Number: 2534-xxS

Category : Wire to Board

Pitch : .098"(2.50mm)

Series : WTB2509-1

File : Download

Product Features

◆ 2~8 circuits available
◆ Plastic material: LCP
◆ Color: Black or Natural
◆ Pin material: Brass
◆ .025”(0.635mm) square pin
◆ Mates with ALEX 2532-xxS housing

Series Specifications

◆ Current rating: 4A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: 10mΩ Max.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient Temperature rise: -40 ~ +105°C
