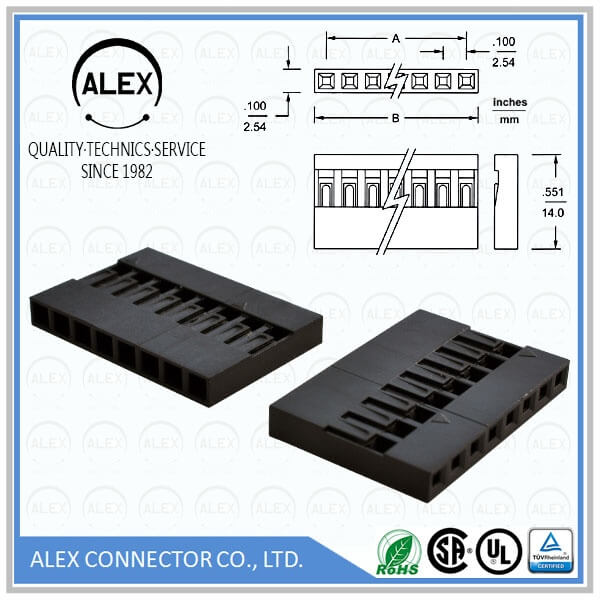

Product Name : Crimp Terminal Housing / .100"(2.54mm) Single Row Wire-to-Board Connectors

Part Number: 6501-xx

Category : Wire to Board

Pitch : .100＂(2.54mm)

Series : WTB2543

File : Download

Product Features

◆ 1 ~ 40 circuits available
◆ Material: PBT, UL 94V-0
◆ Standard color: Balck
◆ Accepts ALEX 65T Terminal
◆ Mates with ALEX 6502, 6503, 6505, 6508 Header

Series Specifications

◆ Current rating: 1A AC, DC max.
◆ Voltage rating: 250V AC, DC
◆ Dielectric strength: 800V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: 20mΩ max.
◆ Ambient temperature range: -25℃ ~ +95℃
　(including temperature rise)
