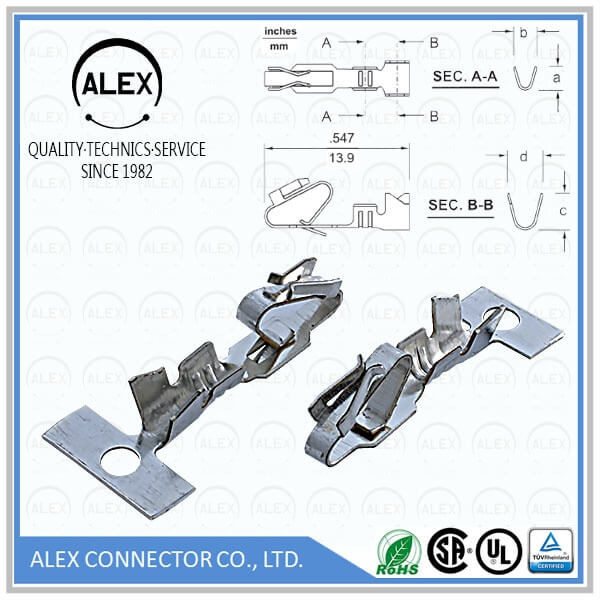

Product Name : Crimp Terminal / .156"(3.96mm) WTB Connectors

Part Number: 24T-12K3

Category : Wire to Board

Pitch : .156＂(3.96mm)

Series : WTB3962

File : Download

Product Features

◆ Material: Brass
◆ Finished: Tin-plated
◆ Trifurcon design
◆ Used in ALEX 8500, 8639 Housings
◆ Wire range: #18 ~ #22 AWG
◆ Thickness: .25mm

Series Specifications

◆ Current rating: 7A
◆ Voltage rating: 250V AC (R.M.S.)
◆ Dielectric withstanding voltage:
　1500V AC/minute
◆ Insulation resistance: 1000MΩ min.
◆ Contact resistance: Initial value/10mΩ Max.
　After environmental testing/20mΩ Max.
◆ Ambient temperature range: -40°C ~ +105°C
