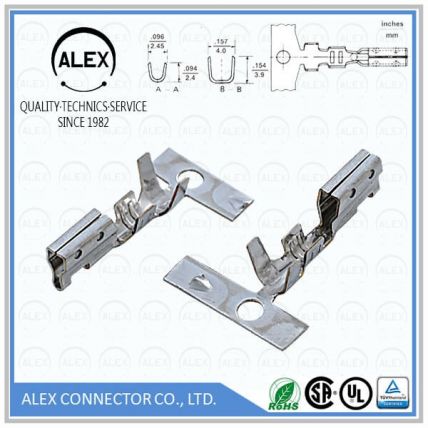

Product Name : Standard Spox Crimp Terminal / .200"(5.08mm) WTB Connectors

Part Number: 94T

Category : Wire to Board

Pitch : .200＂(5.08mm)

Series : WTB5081

File : Download

Product Features

◆ 4 point contact
◆ Material: Brass or phosphor bronze
◆ Finished: Tin-plated
◆ Used in ALEX 8095, 8097, 8099 Housings
◆ Wire range: AWG #18 ~ #22
◆ Insulation Diameter: 2.60mm ~ 3.20mm

Series Specifications

◆ Current rating: 7A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ max.
◆ Insulation resistance: 1000MΩ min.
◆ Dielectric strength: 1500V AC/minute
◆ Ambient temperature range: -40℃ ~ +105℃
　(Including temperature rise)
