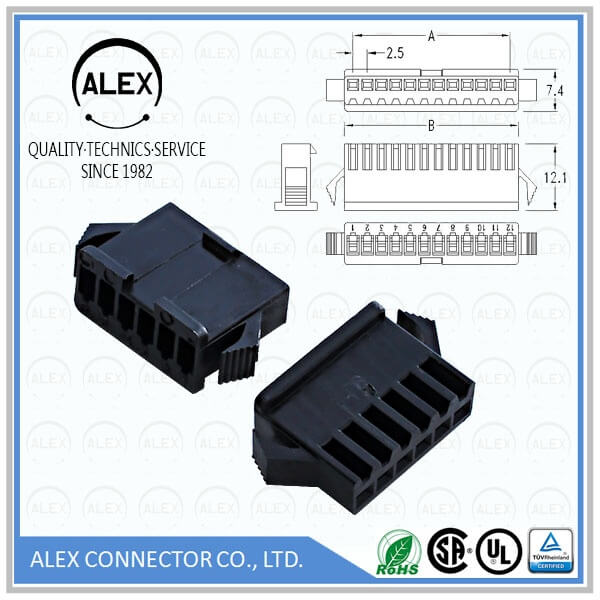

Product Name : Receptacle Housing / .098"(2.50mm) WTW Connectors

Part Number: 8854-xx

Category : Wire to Wire

Pitch : .098＂(2.50mm)

Series : WTW2501

File : Download

Product Features

◆ 2 ~ 12 circuits available
◆ Material: UL 94V-0 nylon 66
◆ Accepts ALEX 854T Terminal
◆ Mates with ALEX 8855-N Housing
◆ Standard color: Black
◆ UL file No.: E114003

Series Specifications

◆ Current rating: 3A AC, DC
◆ Voltage rating: 250V AC, DC
◆ Insulation resistance: 500MΩ min.
◆ Dielectric Withstanding Voltage:
　1000V AC/minute
◆ Contact resistance: Initial value/10mΩ max.
　After environmental testing/20mΩ max.
◆ Ambient temperature range: -25°C ~ +85°C
　(including temperature rise)
◆ Applicable Wires: AWG #26 ~ #22
◆ Applicable panel thickness:
　.020"(0.50mm) ~ .079"(2.00mm)
